Data Source¶

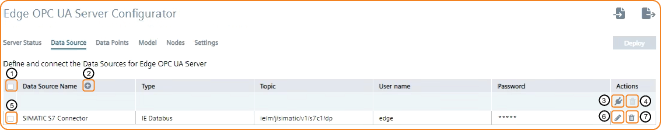

This tab allows you to add a data source for server. All existing configured data sources are displayed as follows:
The following table lists the different UI elements in the "Data Source" tab page:
| UI Element | Description |
|---|---|
| ① Global Check Box | Using this check box, you can select/deselect all data source configurations. |
| ② Add Data Source Icon | Using this icon, you can add a data source. |
| ③ Connect Data Source Icon | Using this icon, you can connect the data sources to Industrial Edge Device. |
| ④ Global Delete Icon | Using this icon, you can delete all selected data source configurations. |
| ⑤ Check Box | Using this check box, you can select a data source. |
| ⑥ Edit Icon | Using this icon, you can edit the data source configuration. |
| ⑦ Delete Icon | Using this icon, you can delete a data source configuration. |
When you make changes in the "Data Source" tab, you must either click "Deploy" or click
to reflect the changes on the corresponding data points. For more details, refer Add Data Source.
